Gathering accurate IMU & ECG
RAW data, reliable results.

WEARABLES > INSPIRIT LAB

INSPIRIT LAB

Gathering accurate IMU & ECG RAW data, reliable results.

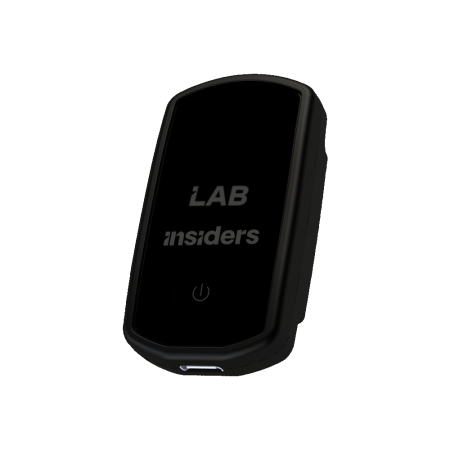

INSPIRIT LAB (former AdMos) is the smallest and lightest sensor available on the market.

With its multiple embedded sensors and its high level of accuracy & integration, INSPIRIT LAB is the perfect instrument for most demanding sports data scientists, researchers and academics.

INSPIRIT LAB (former AdMos) is the smallest and lightest sensor available on the market.

With its multiple embedded sensors and its high level of accuracy & integration, INSPIRIT LAB is the perfect instrument for most demanding sports data scientists, researchers and academics.

High reliability

GNSS tracking technology.

All in one

Motion sensing, position tracking and heart-rate
monitoring capabilities… all in a 35-gram device.

compact

Inspirit LAB is the smallest high-precision tracker on the
market. Its lightweight allows the athlete to perform at
its best.

Plug & play

Straightforward process to gather directly
the insights you need. No infrastructure needed.

High reliability
GNSS tracking technology,
18Hz ready.
All in one
Motion sensing, position tracking and heart-rate
monitoring capabilities… all in a 35-gram device.
compact

Inspirit LAB is the smallest high-precision tracker on the market.
Its lightweight does not disturb the athlete
and allows him to perform at its best.

Plug & play

Straightforward process to gather directly
the insights you need. No hardware needed.

Heart-rate

Heart-rate

Beats per minute

Zones (time and %)

Heart-rate average

Heart-rate max

Beat per beat extract (graph)
Beats per minute
Zones (time and %)
Heart-rate average
Heart-rate max

Position

Position
Total distance run

Distance/ Time by speed

Max and average speed zones

Sprint statistics

Replay function and heat-map
Total distance run
Distance/ Time by speed
Max and average speed zones
Sprint statistics
Replay function and heat-map

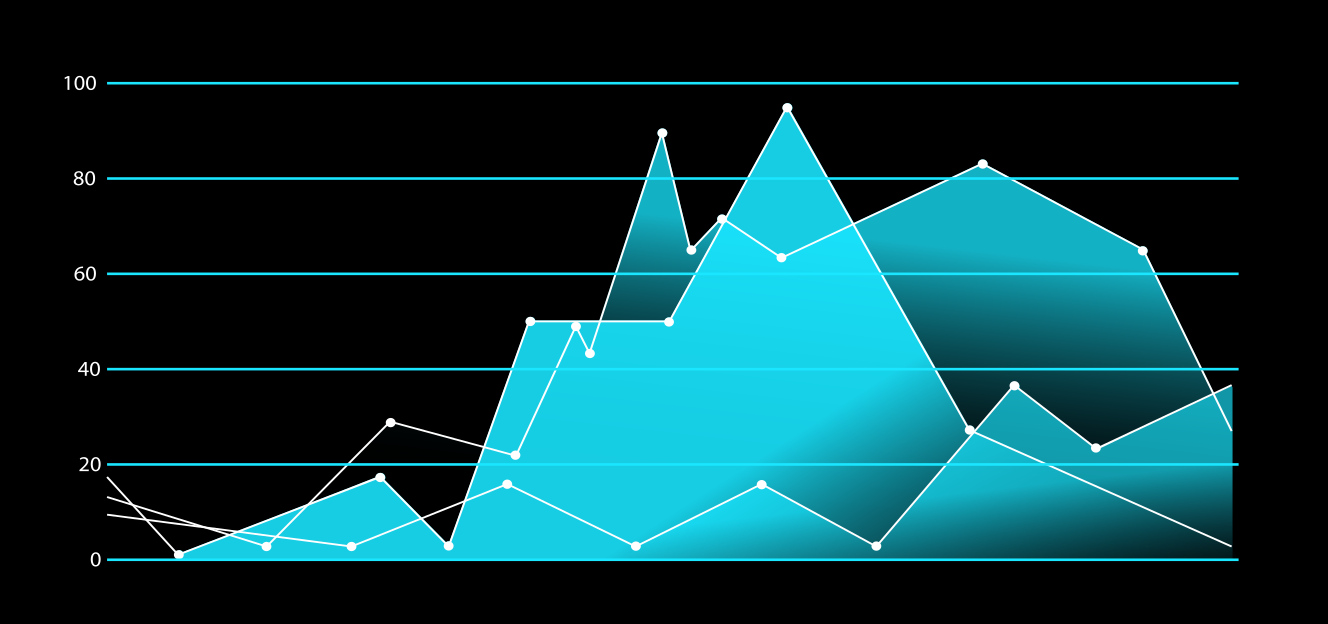

Motion & Trend

Motion & Trend
Acceleration (m/s2)

Deceleration (m/s2)

Trend analysis

Interactive statistics

Intensity
Acceleration (m/s2)
Deceleration (m/s2)
Trend analysis
Interactive statistics
Intensity
The INSPIRIT LAB kit
The INSPIRIT LAB kit
HR shirt

The last generation conductive specific shirts features two unobtrusive heart rate capture points built directly into the fabric. This tracks heart rate metrics and avoids the use of a bulky heart rate chest strap. The most comfortable connected shirt with breathable fabrics with optimized body coverage. Women specific shirts available.

Sizes and Care

HR shirt

The last generation conductive specific shirts features two unobtrusive heart rate capture points built directly into the fabric. This tracks heart rate metrics and avoids the use of a bulky heart rate chest strap. The most comfortable connected shirt with breathable fabrics with optimized body coverage. Women specific shirts available

Sizes and Care

The Hub

Enables easy and fast data transfer, charging and carrying of up to 25 devices.
Straightforward to use, it is ideal for teams with more than 6 devices.

The Hub

Enables easy and fast data transfer, charging and carrying of up to 25 devices.
Straightforward to use, it is ideal for teams with more than 6 devices.

Caracteristics
GNSS sensor
  • 10Hz GNSS receiver

  • Concurrent reception of GPS, Galileo, GLONASS, BeiDou

  • 30 cm relative position accuracy

  • Speed accuracy of 0.05m/s based on Doppler effect

  • Recording of 3D speeds


ECG sensor
  • Heart-Rate measurement

  • R-R interval measurement

  • Full ECG signal measurement


IMU sensor
  • 3-axis accelerometer ±2/±4/±8/±16g up to 250Hz

  • 3-axis gyroscope ±125/±245/±500/±1000/±2000 dps up to 250Hz

  • 3-axis magnetometer ±16g ±4/±8/±12/±16 gauss up to 250Hz


Barometric pressure sensor
  • 260 to 1260 hPa absolute pressure sensor


Internal memory
  • Up to 350 hours of data recording


Battery
  • 6 hours autonomy

  • 1 hour full-charge time


Dimensions
  • 65mm x 35mm x 15mm


Weight
  • 35 grams


Interface
  • USB-C connector for data synchronization and battery charging

Caracteristics
GNSS sensor
  • 10Hz GNSS receiver, configurable up to 18Hz
  • Concurrent reception of GPS, Galileo, GLONASS, BeiDou
  • 30 cm relative position accuracy
  • Speed accuracy of 0.05m/s based on Doppler effect
  • Recording of 2D speeds

ECG sensor
  • Heart-Rate measurement

Internal memory
  • Up to 350 hours of data recording

Battery
  • 6 hours autonomy
  • 1 hour full-charge time

Dimensions
  • 65mm x 35mm x 15mm

Weight
  • 35 grams

Interface
  • USB-C connector for data synchronization and battery charging
